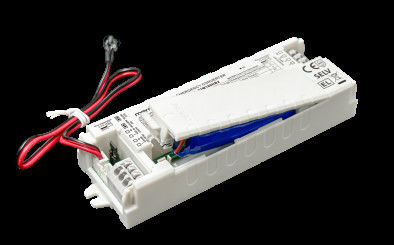

5W 1hour 10-50Vdc LED Conversion Kits with Built-in Li-ion Battery Self Test & Manual Test Switchable
Product Overview

Constant power output LED emergency power supply with wide output voltage range, featuring input relay switching and comprehensive protection functions.

Key Features
  • Constant power output with wide voltage range (10-50VDC)
  • Input relay switching technology
  • Multiple protection functions: battery overcharge, over-discharge, and output short circuit protection
  • Switchable between Self Test and Manual Test modes
Technical Specifications
Charge Parameters
ParameterKE022-05AM060KB
Rated input voltage220-240Vac 50Hz /60Hz
Rated input current0.06A Max. @230Vac
Input inrush current15A(twidth=100uS 50% Ipeak )@230Vac(Cold start at full load)
Power factor≥0.5@230Vac
Input power<3W
Battery charging current (Max)240mA
Battery charging time24 hours Max.
Emergency Parameters
ParameterSpecification
Operating modeEmergency mode
Load typeLED
Emergency power5W
Emergency time1 hour
Load output current500-100mA
Load output voltage10-50VDC
Battery Specifications
Li-ion battery3.7V 2600mAh (capacity meets emergency time at 25℃)
Battery warranty3 years
Driver Requirements
Surge current8A
Input current3A Max.
Output current2A
LED Indicator Status
StatusReasonCharge Indicator
Battery fully charged and operationalStandard daily useSolid green
Battery ChargingInitial Charge/Battery Top UpFlashing green 1 sec on 1 sec off
Auto Test 3 Hours (every 12 months)Periodic self-testFlashing Green 3 sec on 1 sec off
Auto Test 5 Min (every 30 days)Periodic self-testFlashing Green 3 sec on 3 sec off
Duration test faultFailed the 3-hour annual testFlashing Red 0.5 sec on 0.5 sec off
LED faultNot plugged in or damaged/faultyFlashing Red 2 sec on - 2 sec off
Battery Disconnected/FaultyNot plugged in or damaged/faultySolid red
Protection Features
  • Battery over-charge/deep discharge protection: Yes
  • Output over-voltage protection: Yes
  • Output overload protection: Yes
  • Output short circuit protection: Yes
Operating Environment
Operating temperature/humidity0℃…+50℃ Humidity; 20%-75%(without condensation)
Storage temperature/humidity-5℃-35℃
Case Max. Temp(Tc)75℃
Safety & EMC Compliance
Withstand voltage3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-")
Safety standardEN61347-1, 60598-2-22, 61347-2-7, 62034
EMC standardEN55015, EN61000-3-2, EN61000-3-3
Battery standardUN38.3
Environmental protectionCompliant with RoHS
CertificationCE
Physical Specifications
Input/output terminal specificationPress terminal, wire diameter: 0.5-0.75mm²
IP ratingIP20
Type of protectionClass 2
Installation typeBuilt-in installation
Installation dimension134×42×22mm
Weight: Emergency Power Supply122±5g
Lifespan5 Year @Ta (Battery not included)

All parameters are tested on the input voltage 230Vac, environment temperature 25℃, unless otherwise specified.

Product Dimensions
5W 1hour 10-50Vdc LED conversion kits with Built-in Li-ion Battery Self Test & Manual Test Switchable 0
Wiring Diagrams
5W 1hour 10-50Vdc LED conversion kits with Built-in Li-ion Battery Self Test & Manual Test Switchable 1
Alternative Wiring Configuration
5W 1hour 10-50Vdc LED conversion kits with Built-in Li-ion Battery Self Test & Manual Test Switchable 2
Test Mode Selection
5W 1hour 10-50Vdc LED conversion kits with Built-in Li-ion Battery Self Test & Manual Test Switchable 3
Wire Preparation
5W 1hour 10-50Vdc LED conversion kits with Built-in Li-ion Battery Self Test & Manual Test Switchable 4
  • Solid or Stranded wire type: 0.5 - 0.75mm²
  • To access or remove wires from terminals, use a screwdriver to push the buttons down
Manual Test Operation Instructions
  1. Before installation, set Pin short: Manual Test
  2. Connect the wire according to the wiring diagram
  3. L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply will be normally charging. Turn off Switch S1, and the load lamp turns off
  4. Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by the LED driver, and the indicator light will turn on
Automatic Test Operation Instructions
  1. Before installation, set Pin open: Automatic Test
  2. Connect the wire according to the wiring diagram
  3. L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Notice
  • The battery should be recharged and discharged semiannually in normal use conditions
  • Do not connect to the circuit when the battery is not used to prevent over-discharging of the battery due to self-consumption of the circuit board
  • Please keep the battery away from the heat source when installing and using it, and only allow it in a certain working temperature range
  • The battery should be stored in a cool and dry environment
  • After a long time of storage, the battery is cycled every 12 months as required
  • AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
