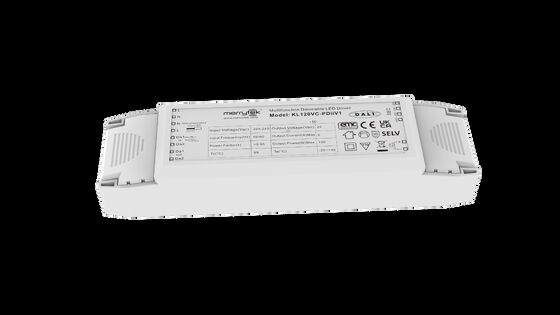

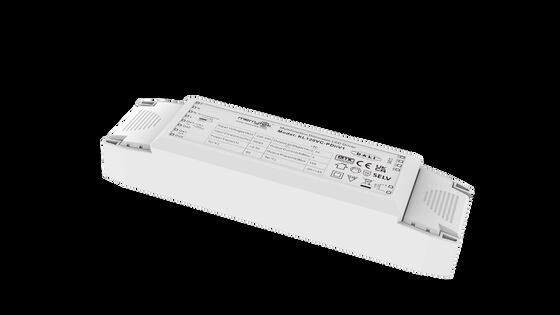

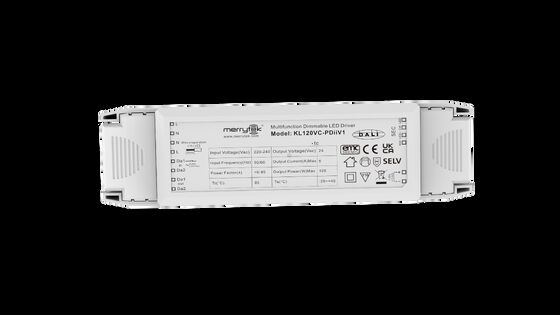

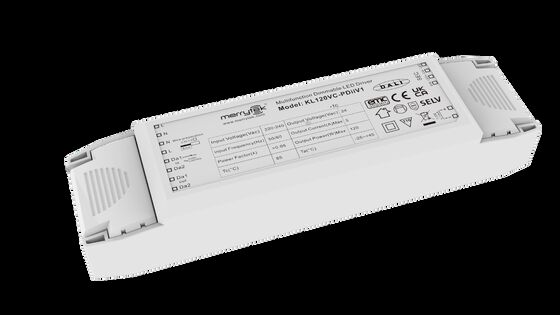

120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty

  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
  • 120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty
Luogo di origine Cina
Marca Merrytek
Certificazione CE
Numero di modello KL120VC-PDiiV1
Quantità di ordine minimo 100
Prezzo Negoziabile
Imballaggi particolari Scatola bianca + Cartone, 50pcs/CTN
Tempi di consegna 1, campione e piccolo ordine: entro 5 giorni lavorativi dalla ricezione del pagamento. 2, Ordine di
Termini di pagamento T/T o PayPal
Capacità di alimentazione 10,000pcs al mese

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Tensione di ingresso nominale 220-240Vac 50Hz /60Hz Intervallo di tensione di ingresso CC 200-240Vdc
Modalità operativa DALI2 DT8 & PUSH & dimmerazione 1-10V Metodo di controllo Driver led dimmerabile 24V DALI DT8
Fattore di potenza ≥ 0.99 Efficienza 92%
Tensione costante 24vdc Dimensione 202x58x30 mm
Grado di protezione IP IP20 Garanzia 5 anni
Evidenziare

24V DALI DT8 dimmable LED driver

,

120W constant voltage LED driver

,

DALI2.0 dimmable driver with warranty
Lasciate un messaggio
Descrizione di prodotto
120W Constant Voltage 24V DALI DT8 Dimmable LED Driver
High-performance 120W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
Key Features
  • Flicker-free performance across entire dimming range
  • Stand-by power consumption below 0.5W
  • Primary dimming with push button control
  • Secondary dimming with 0-10V dimmer and potentiometer
  • Built-in DALI interface DT8 compatibility
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Comprehensive protection: short circuit, over temperature, over voltage
  • Current derating for high ambient temperature operation
  • Push dim with memory function
  • 5-year manufacturer warranty
Technical Parameters
Series KL120VC-PDiiV1
Input Specifications
Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current (@230Vac) 0.6A Max
Inrush Current 30A (Half current pulse width 100US) @230VAC
Power factor ≥ 0.99 (@230Vac,100% load)
Total harmonic distortion Typical: 6% (@230Vac, 100% load)
Stand-by power ≤0.3W
Efficiency(230Vac,100% load) 92%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Output Specifications
Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Forward voltage 24V
Output current 5A
Max. output voltage (no-load) 30V
Full load output power 120W Max.
Minimum load 12W
Output current/voltage tolerance ±5%
Wiring method Screw terminal, wire cross section:2*0.5-2.5mm²
Dimensions
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 0
Wiring Diagrams
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 1
DALI Dimming
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 2
Push Dimming
120W constant voltage 24V DALI DT8 dimmable led driver with 5 years warranty 3
Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
  • Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
  • Memory function: Remembers the last dimming setting
  • DALI dimming: Connect to DALI system for 0-100% dimming control
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
