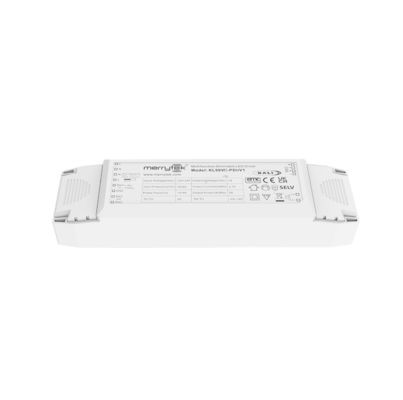

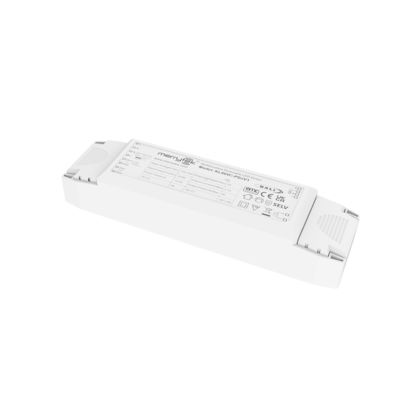

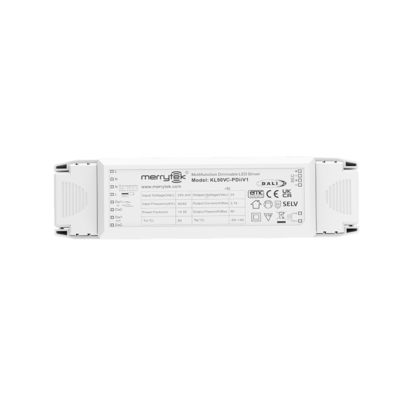

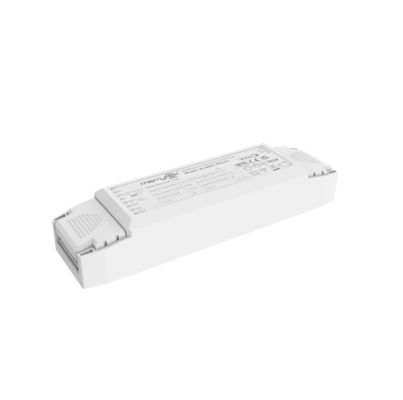

90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty

  • 90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty
  • 90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty
  • 90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty
  • 90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty
Luogo di origine Cina
Marca Merrytek
Certificazione CE
Numero di modello KL90VC-PDiiV1
Quantità di ordine minimo 100
Prezzo Negoziabile
Imballaggi particolari Scatola bianca + Cartone, 50pcs/CTN
Tempi di consegna 1, campione e piccolo ordine: entro 5 giorni lavorativi dalla ricezione del pagamento. 2, Ordine di
Termini di pagamento T/T o PayPal
Capacità di alimentazione 10,000pcs al mese

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Tensione di ingresso nominale 220-240Vac 50Hz /60Hz Intervallo di tensione di ingresso CC 200-240Vdc
Modalità operativa Tensione costante Metodo di controllo Driver dimmerabile per strip led DALI DT8 a tensione costante 24V
Fattore di potenza ≥ 0.99 Efficienza 92%
Tensione costante 24vdc Dimensione 202x58x30 mm
Valutazione IP IP20 Garanzia 5 anni
Evidenziare

24V DALI DT8 LED driver

,

90W dimmable LED strip driver

,

DALI2.0 driver with 5-year warranty
Lasciate un messaggio
Descrizione di prodotto
90W Constant Voltage 24V DALI DT8 LED Strip Dimmable Driver with 5-Year Warranty
Product Description

High-performance 90W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.

  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Secondary dimming with a 0-10V dimmer and a potentiometer
  • Built-in DALI interface DT8
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Series Name KL90VC-PDiiV1
Input Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current (@230Vac) 0.45A Max
Inrush Current 30A (Half current pulse width 100US) @230VAC
Power factor ≥ 0.99 (@230Vac,100% load)
Total harmonic distortion Typical: 6% (@230Vac, 100% load)
Stand-by power ≤0.3W
Efficiency(230Vac,100% load) 92%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Loop-in&Loop-out quantity 16PCS(@230Vac)
Automatic circuit breaker type (Calculate current in the wire) B10 | 7 | C10 | 12 | B10 | 7 | C10 | 12 | B10 | 6 | C10 | 10
B13 | 9 | C13 | 16 | B13 | 9 | C13 | 16 | B13 | 7 | C13 | 13
B16 | 11 | C16 | 20 | B16 | 11 | C16 | 20 | B16 | 9 | C16 | 16
B20 | 14 | C20 | 25 | B20 | 14 | C20 | 25 | B20 | 11 | C20 | 20
B25 | 17 | C25 | 35 | B25 | 17 | C25 | 35 | B25 | 14 | C25 | 25
/ | / | C32 | 35 | / | / | C32 | 35 | / | / | C32 | 30
Output Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Forward voltage 24V
Output current 3.75A
Max. output voltage (no-load) 30V
Full load output power 90W Max.
Dimensions
90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty 0
Wiring Diagrams
90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty 1
DALI Dimming
90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty 2
Push Dimming
90W constant voltage 24V DALI DT8 led strip dimmable driver with 5-year warranty 3
Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
  • Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
  • Memory function: Remembers the last dimming setting
  • DALI dimming: Connect to the DALI system for 0-100% dimming

Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
