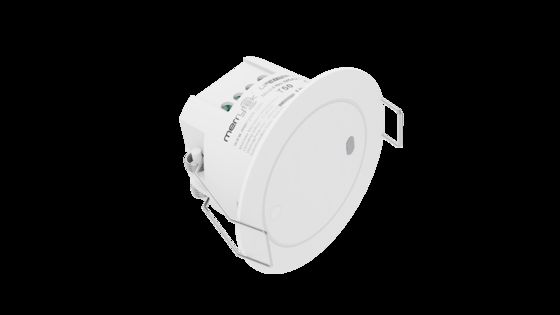

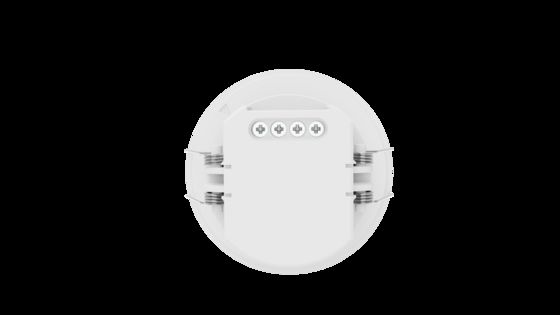

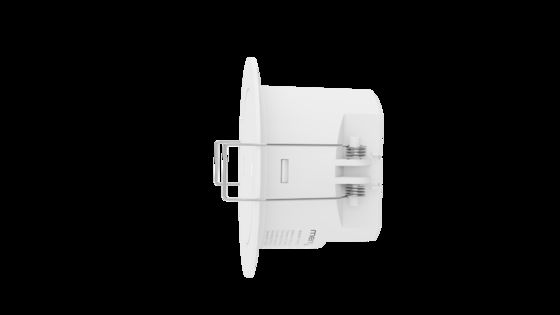

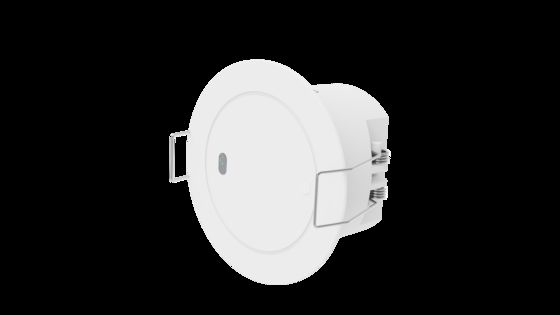

Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact

  • Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
  • Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
  • Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
  • Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact
Luogo di origine Shenzhen, Cina
Marca Merrytek
Certificazione CE
Numero di modello MSA237D 99
Quantità di ordine minimo 100pcs
Prezzo Negoziabile
Imballaggi particolari Scatola bianca + etichette di scatola bianca + cartone + cartone
Tempi di consegna 1, campione e piccolo ordine: entro 5 giorni lavorativi dalla ricezione del pagamento. 2, Ordine di
Termini di pagamento T/t
Capacità di alimentazione 10000 pezzi/mese

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Tensione di lavoro 12-24VDC Modalità di lavoro Un contatto a secco senza potenziale senza potenziale
Altezza di montaggio 20,5-4,0 m Tutta la vita 5 anni di garanzia@Ta 230V a pieno carico
Potere di lavoro ≤ 1,2 W Frequenza di lavoro 24 GHz ± 24,25 GHz
Tipo di rilevamento Rilevamento maggiore/minore/micro movimento Montaggio Montaggio a livello
Evidenziare

12-24Vdc occupancy detector

,

potential-free dry contact sensor

,

Merrytek presence detector with warranty
Lasciate un messaggio
Descrizione di prodotto
Merrytek 4th Generation 12-24Vdc Input Occupancy Detector with One Potential-Free Dry Contact
Product Attributes
Attribute Value
Working voltage 12-24Vdc
Working mode One potential-free dry contact
Mounting height 2.5-4.0m
Life time 5 years warranty@Ta 230V full load
Working Power ≤1.2W
Working frequency 24GHz ±24.25GHz
Detecting type Major/Minor/Micro Motion detection
Mounting Flush mounting
Parameters
Input/Output Specification
Input voltage 12-24V DC
Rated voltage 24V DC
Working Current @12Vdc:80±3mA @24Vdc:42±3mA
Working Power ≤1.2W @24V DC
Output signal NO/NC/Pulse dry contact (Factory setting is NO dry contact)
Load type Resistive (load voltage :Vdc≤36V,load current:100mA max)
Sensor Parameter Specification
Radar frequency 24GHz -24.25GHz, ISM band
Transmitting Power 5mW Max.
Detection Area 0-4m(setting by merrytek mini program)
Hold Time 3-7200s (setting by Merrytek mini program)
Daylight threshold 5-2000Lux(setting by merrytek mini program)
Daylight sensor range 0-2000Lux
Radius detection range 4±0.5m(based on 41㎡ open area test)
Sensitivity high/medium/low
Remote control Available(MH18)
Merrytek mini program Available
Mounting height 2.5-4.0m (typical value: 3m)
Detecting Angle 120°
Application Environment Specification
Drill hole Φ50-55mm
Working Temperature 0℃...+50℃
Storage Temperature -25℃~+80℃ Humidity:≤85% (non-condensation)
Certificate Standard Specification
Certificate FCC/RED
Environmental Requirement Compliant with RoHS
IP Rating IP20
Guarantee 5 year(only for product quality problem)
Product Function
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 0
Dimension
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 1
Wiring
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 2
Wiring Layout Suggestion
  • Hand-in-hand wiring is highly recommended, yet star-topology or tree-topology is strongly deprecated
  • When there's more than 1pc sensor in a line, you shall consider that all equipment current consumption shall not surpass your driver's loading capacity
Detection
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 3
Initialization

When powered on, the sensor indicator will turn off after flashing for 10 seconds and will enter a 20S detection cycle. If presence is detected, the sensor will report presence and enter hold time calculation; if absence is detected, then the sensor will report absence. During initialization, the sensor will not detect a moving signal, and you can use our MH18 remote to adjust detection area, hold time, daylight sensor, etc, parameters.

Installation Instructions

Embedded mounting installation

  1. Trepanning a 50-55mm hole
  2. Securely wire the cable into the terminal
  3. Press the program button
  4. Put the spring clip into the hole and fasten it well
  5. Ensure the sensor is firmly installed
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 4
Factory Default Setting

Detection Area: 4m Hold Time: 30S Indicator Light: open Sensitivity: medium sensitivity

Remote Control MH18
Merrytek 4th generation 12-24Vdc input Occupancy detector with one potential-free dry contact 5
