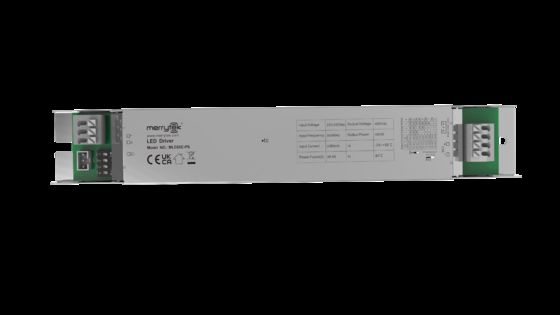

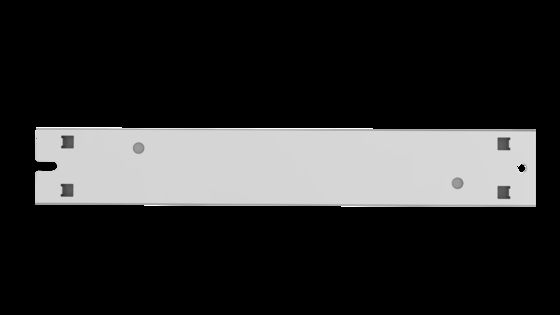

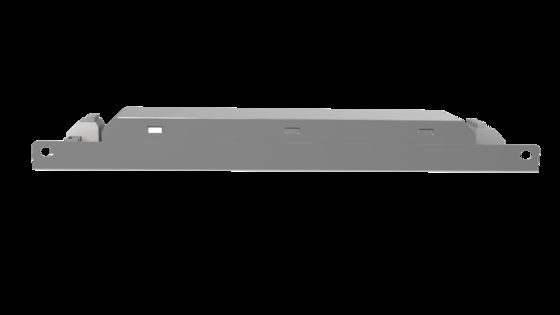

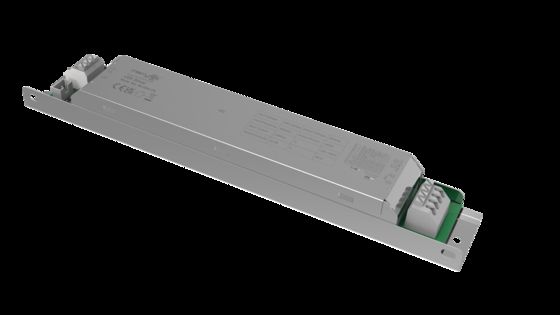

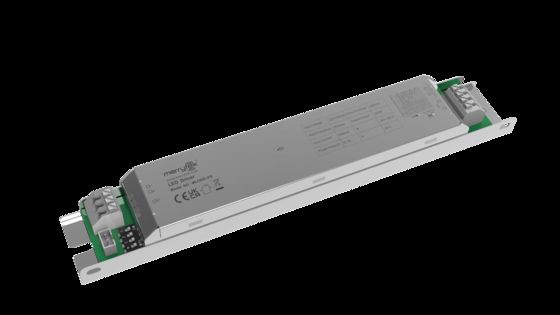

65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current

  • 65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current
  • 65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current
  • 65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current
  • 65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current
  • 65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current
Luogo di origine Shenzhen, Cina
Marca Merrytek
Certificazione CE、UKCA、SAA
Numero di modello MLC65C-PS
Quantità di ordine minimo 100pcs
Prezzo Negoziabile
Imballaggi particolari Assicella del sacchetto del PE, cartone (K=A)
Tempi di consegna 1, campione e piccolo ordine: entro 5 giorni lavorativi dalla ricezione del pagamento. 2, Ordine di
Termini di pagamento T/t
Capacità di alimentazione 10000 pezzi/mese

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
tensione 220-240Vac 50Hz/60Hz Potenza in stand-by ≤0,5 W (equipaggiato con testa divisa con rilevamento Merrytek 5,8 Ghz)
Fattore di potenza ≥0,95 (carico massimo 230 V) Modello di lavoro Constant Current
Flicker ≤5% Valutazione IP IP20
Tutta la vita 5 anni di garanzia@Ta 230V a pieno carico
Evidenziare

65W isolated sensor LED driver

,

PWM dimming terminal LED driver

,

1200-1600mA current sensor driver
Lasciate un messaggio
Descrizione di prodotto
65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current
Product Features
  • Isolated two-stage circuit frame, full dimming and flicker-free
  • Support DIP switches to set the current gear
  • Support 12V auxiliary power supply, with sensing split head can achieve integrated sensing function
  • Equip with PWM dimming control port
  • Suitable for various microwave sensors or wireless smart modules
Parameters
Product series MLC60C-PS
Rated voltage 220-240V AC 50Hz/60Hz
Stand-by power ≤0.5W(Equip with Merrytek 5.8Ghz sensing split head)
Surge 1KV(L/N,EN61000-4-5)
Power factor ≥0.95 (230V Max load)
Input current ≤0.23A @230VAC full load
Inrush current <20A(100us half-current)@230V AC
Working efficiency ≥86% (230V Max load)
Output
Working model CC
Type of load LED
Flick ≤5%
Constant current accuracy Constant current accuracy ±5%
Auxiliary driver parameters 12VDC Current: 100mA Max
No-load output voltage 60VDC Max
Full load power 65W Max
Load current 1200mA / 1250mA / 1300mA 1350mA / 1400mA / 1450mA 1500mA / 1550mA / 1600mA
Load output voltage range 1200mA / 15-42VDC 1250mA / 15-42VDC 1300mA / 15-42VDC 1350mA / 15-42VDC 1400mA / 15-42VDC 1450mA / 15-42VDC 1500mA / 15-42VDC 1550mA / 15-42VDC 1600mA / 15-40VDC
Abnormality Protection Requirements
Protection mode Input overvoltage protection | Input no-load protection | Input short circuit protection
Environmental Requirements
Operating temperature Built-in: -25...+50℃
Maximum shell temperature(Tc) 85℃
Storage temperature/humidity -40℃...+80℃ Humidity: ≤85% (non-condensation)
Certificate Standards
Certificate CE,UKCA,SAA
Environmental requirement RoHS2.0, Reach requirement
Safety standards(LVD) EN61347-1, EN61347-2-13
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Withstand voltage Primary to secondary: 3.75KVAC Primary to ground :1.5KVAC
IP Rating IP20
Product Category Class I
Others
Wiring method Press terminal, wire diameter:0.5-1.0mm2
Installation Built-in
Package PE bag clapboard, carton(K=A)
Net weight 225±5g
Lifetime 5 years warranty@Ta 230V full load
Split Head Collocation
MC002D 6
MC087D 1
MC087D RC
MC131D A&B
MC137D A&B
MSA207D
MC068D RC
MC116D RC
MC116D B1
Product Information

Wiring and function

65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current 0
65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current 1

Dimension (Unit:mm)

65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current 2
Parameter Curve
65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current 3 65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current 4
Life Time Curve
65W Isolated Sensor DIM Led Driver, With PWM Dimming Terminal, 1200-1600mA Current 5
Output Current Setting
Output current Voltage range S1 S2 S3 S4
1200mA 15-42V - - - -
1250mA 15-42V - - - ON
1300mA 15-42V - - ON -
1350mA 15-42V - - ON ON
1400mA 15-42V - ON ON -
1450mA 15-42V - ON ON ON
1500mA 15-42V ON - ON ON
1550mA 15-42V ON ON ON -
1600mA 15-40V ON ON ON ON
Initialization

When powered on, it is steady on. When the sensor is configured, it changes according to the status of the sensor.

Default Setting

Adjust the corresponding current gear according to the order or customer demand.

Application Notice
  • Please use this product in accordance with the specifications. Failure may occur if the product is used beyond the use conditions.
  • The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
  • The load LED string must be connected first, and then turn on the input power, otherwise it may damage the LED string.
  • After the LED drive input is powered off, there will be residual voltage at the output end, which can be maintained for about 3 minutes.
